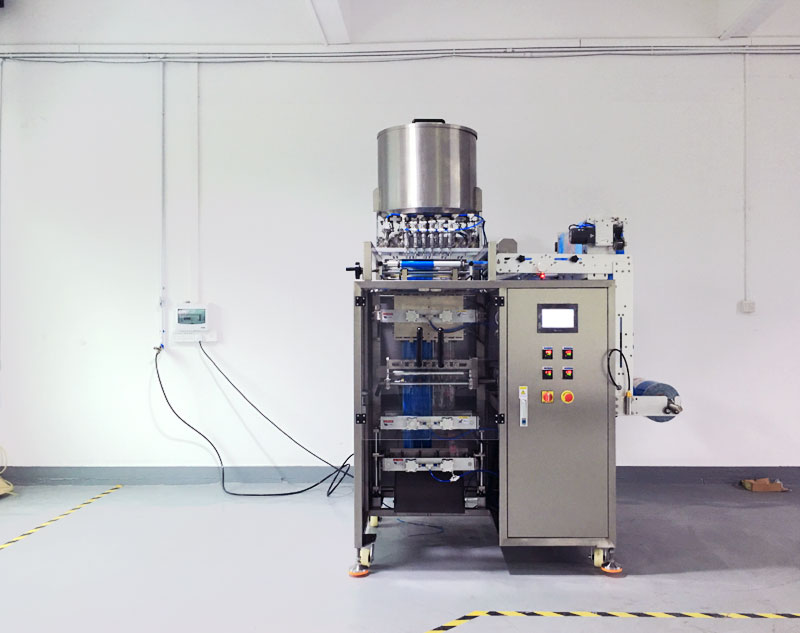

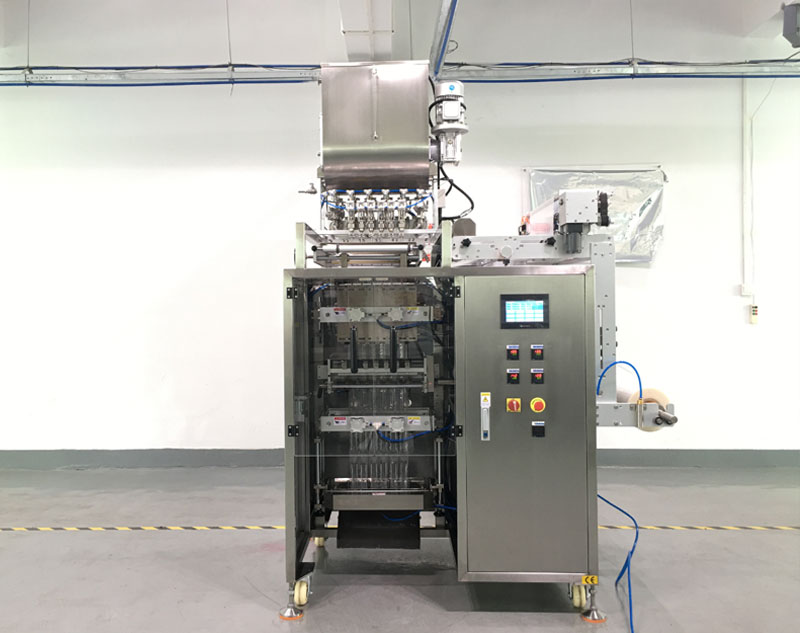

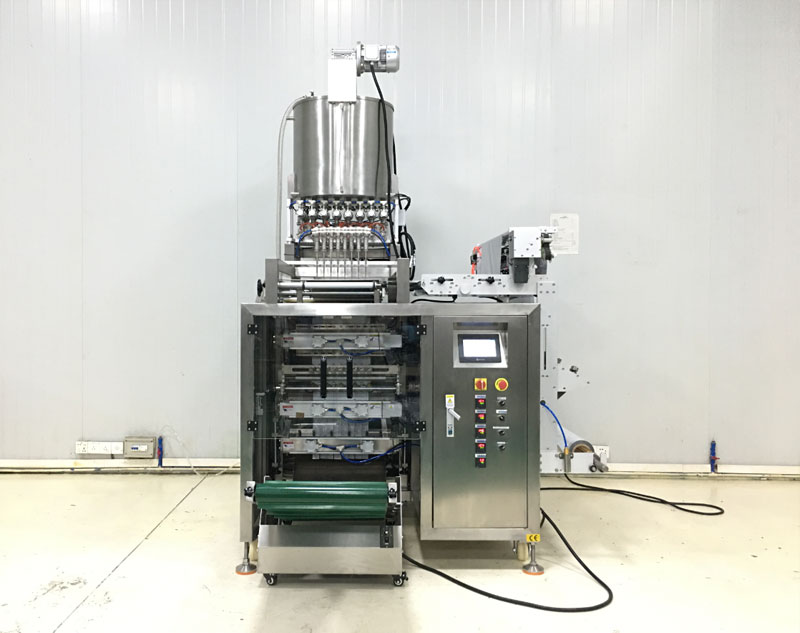

Multi row four side sealing liquid packaging machine

Product model：CY500Y/CY700Y/CY980Y/CY1200Y

Full automatic multi row three side sealing liquid packaging machine is applicable to the full-automatic soft packaging
of liquid, paste, sauce and other products in medicine, food, daily chemicals, health products, pesticides, cosmetics and other industriesSuch as mouthwash, honey, cosmetics, soy sauce, oil, fruit juice, drinks, liquid medicine, etc

We can help you find the goods you want by phone

Consult immediately 18676947539
Machine parameters
    Model CY500Y CY700Y CY980Y CY1200Y
    Lanes number 2-8 lanes 3-12 lanes 4-16 lane 5-20 lane
Capacity  25--40 /  Max.25-40cycle/min/lane
Bag size L 45-160mm  W:50-125mm L 45-160mm  W:50-125mm L 45-160mm  W:50-125mm L 45-160mm  W:50-125mm
Film width&thickness Max.500mm,0.07--0.1mm Max.700mm,0.07--0.1mm Max.980mm,0.07--0.1mm Max.1200mm,0.07--0.1mm
Measuring Method 1. Piston pump;2. Peristaltis pump;3. Ceramic pump;4. Rotarc pump
Sealing type  4 sides sealing 4 sides sealing  4 sides sealingg  4 sides sealing
Cutting type 1. Straight cutting;2. Zig zag cutting ;3 Continuous Cutting
Power supply 1N+PE/50HZ/AC220V/380V/2.8kw 1N+PE/50HZ/AC220V/380V/4.1kw 1N+PE/50HZ/AC220V/380V/5.5kw 1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min
Dimension 950*1470*1750mm 1153*1654*1750mm 1415*1686*2130mm 2220*2210*2600mm
Weight 400kg 550kg 650kg 900kg
Machine details

Coding device

Diaphragm pump feeder

Horizontal and vertical sealing system (1)

Transverse and longitudinal sealing system 2 (1)

Transverse sealing system

Piston (1)

Piston (2)

Piston pump metering system

internal structure

Color Band Coding (2)

Machine video introduction
Effect of packaging sample bag
